Description
| Brand | Control Techniques |
| Input Voltage | 230V and 400V |
| Input Phase | Single and Three Phase |
| Model Name/Number | Unidrive M600 |
| Input Frequency | 50Hz |
| Usage/Application | Industrial |
| Frequency | 0 to 550 Hz |

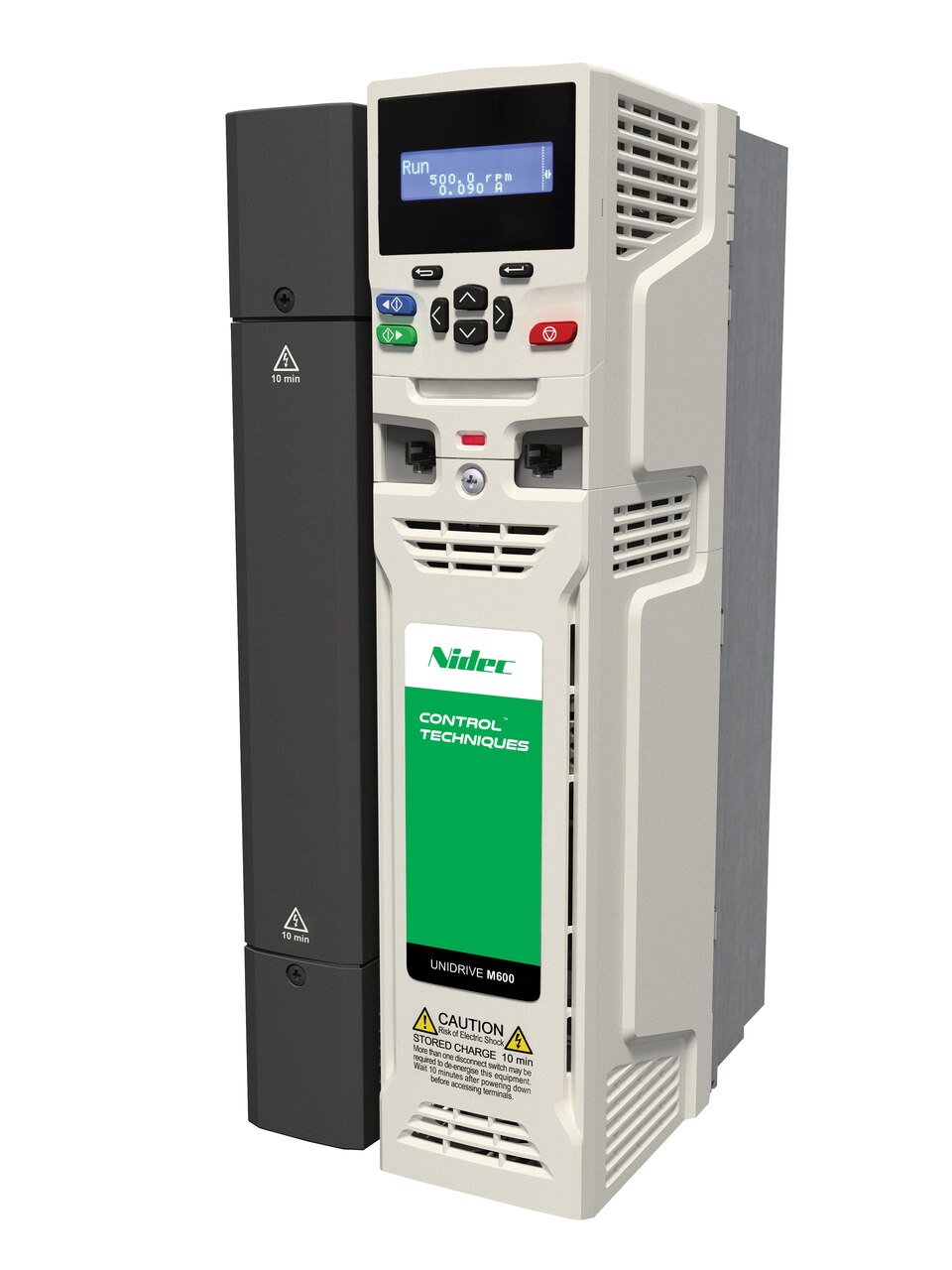

Unidrive M600
We offer excellent quality Unidrive M600, which is used for speed and position control. They are developed from exquisite technology.These are very demanding in industry because of its robustness , dimensional accuracy & speed.
Specifications:
Key data
- Heavy Duty rating: 0.37 kW – 1.2 MW (0.5 – 1600 hp)
- Supply phases: 3 phase
Option slots:
- 3
- Parameter cloning via:
| VOLTAGE RATINGS | |
| 100 V (100 V – 120 V ± 10%) | |
| 200 V (200 V – 240 V ± 10%) | √ |
| 400 V (380 V – 480 V ± 10%) | √ |
| 575 V (500 V – 575 V ± 10%) | √ |
| 690 V (500 V – 690 V ± 10%) | √ |
| CONTROL MODE | |
| Open loop vector or V/Hz induction motor control | √ |
| Open loop Rotor Flux Control for induction motors (RFC-A) | √ |
| Open loop permanent magnet motor control (RFC-S) | √ |
| Closed loop Rotor Flux Control for induction motors (RFC-A) | |
| Closed loop permanent magnet motor control (RFC-S) | |
| Active Front End (AFE) power quality convertor | √ |
