Description
| Brand | Control Techniques |
| Input Voltage | 230V and 400V |
| Input Phase | Single and Three Phase |
| Model Name/Number | Unidrive M400 |
| Input Frequency | 50Hz |
| Usage/Application | Industrial |
| Frequency | 0 to 550 Hz |

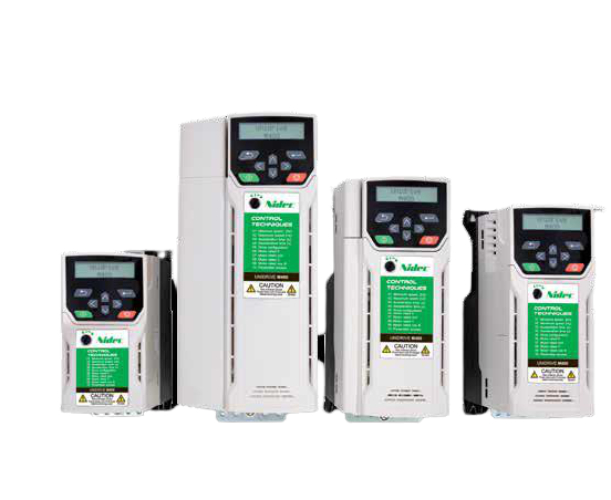

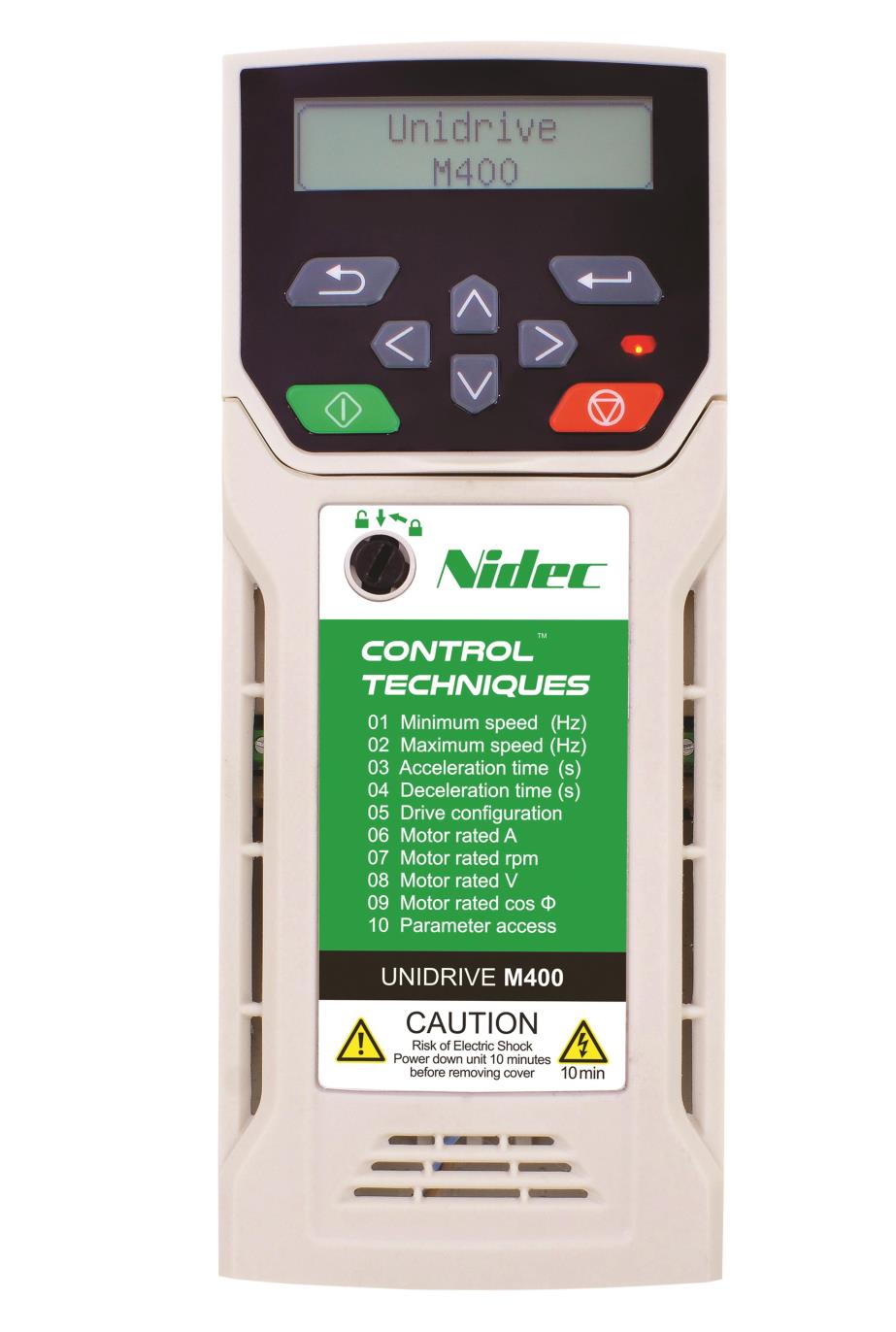

Unidrive M400
We are an eminent organisation that is engaged in trading, supplying and wholesaling qualitative Unidrive M400. Highly experienced and qualified professionals manufacture the offered range following industry set guidelines. Post-procurement, these products are inspected on certain parameters of quality to ensure their defect-free nature.
Features:
- Compact design
- Dimensionally stable
- Rust-resistant
Other Details:
Intelligence: Onboard PLC
Feedback: Encoder input – Speed follower
Machine safety: 2 x Safe Torque Off terminals
Keypad: No keypad as standard
Option slots: 1 (Size 2 and above)
Parameter cloning via:
- PC tools
- 2SD card
Specifications:
| Voltage Ratings: | |
| 100 V (100 V – 120 V ± 10%) | √ |
| 200 V (200 V – 240 V ± 10%) | √ |
| 400 V (380 V – 480 V ± 10%) | √ |
| 575 V (500 V – 575 V ± 10%) | √ |
| 690 V (500 V – 690 V ± 10%) | √ |
| Control Mode: | |
| Open loop vector or V/Hz induction motor control | √ |
| Open loop Rotor Flux Control for induction motors (RFC-A) | √ |
| Open loop permanent magnet motor control (RFC-S) | |
| Closed loop Rotor Flux Control for induction motors (RFC-A) | |
| Closed loop permanent magnet motor control (RFC-S) | |
| Active Front End (AFE) power quality convertor |
